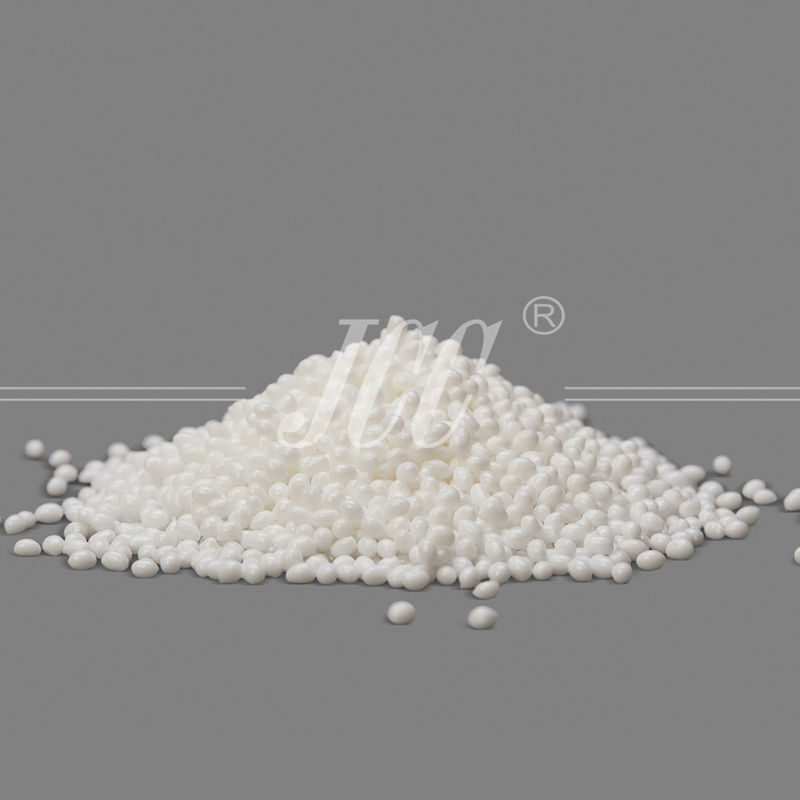

Copolyester PES Hot Melt Adhesive Glue Granules For Diesel Filter Assembly
| Place of Origin | China |
| Brand Name | JCC |
| Certification | Oeko-tex Certificate, ISO, ZDHC |
| Model Number | JCC-PES 3150 |
| Document | PES Products.pdf |
Diesel Filter hot melt adhesive granules
,hot melt adhesive granules 150C
,hot melt glue granules 180C
| Attribute | Value |
|---|---|
| Material | Copolyester |
| Color | White |
| Bond Strength | High |
| Chemical Resistance | Good |
| Viscosity | High |
| Heat Resistance | Excellent |
| Weather Resistance | Good |
| Form | Hot Melt |
| Application Temperature | 150-180°C |
JCC-3150 is a copolyester hot melt adhesive that bonds quickly with 100% solid content. Widely used in clothing interlining, leather and shoe material, heat-transfer printing, hot melt yarn, automotive interior and other industries. Features proper pressing temperature, high peel strength, excellent adhesion to textiles, polymer materials and some metal materials, with good resistance to water washing and excellent flexibility.
| Step | Requirements | Technical Parameters |
|---|---|---|
| 1. Substrate Prep | Clean, dry surfaces | - Solvent/grease-free - Roughness Ra≤3.2μm |
| 2. Ambient Control | Monitor substrate/environment temperature | ≥ 15°C |
| 3. Adhesive Melting | Set melt equipment temperature | 140-160 °C |
| 4. Adhesive Application & Pressurization | Pressure & dwell time | 1-3 MPa |
| 5. Initial Solidification | Remove pressure, rest undisturbed | Cool at RT ≥30 seconds |
| 6. Full Curing | Crystallization for final strength | 25 °C × 24h |
- Exceptional Chemical Resistance
- Resists diesel corrosion: Highly tolerant to diesel, engine oil, lubricants, and additives without swelling or degradation during prolonged exposure.
- Hydrolysis resistance: Maintains bond stability in high-humidity/condensation environments.
- Extreme Temperature Adaptability
- High-temperature resistance: Continuous service temperature up to 120°C-150°C (modified grades: 180°C).
- Low-temperature flexibility: Retains elasticity at -40°C.
- High-Strength Bonding & Sealing Performance
- Substrate compatibility: Strong adhesion to filter media materials.
- Leak-proof sealing: Forms pore-free seals that block diesel particulates and moisture.
- Eco-Friendly & Regulatory Compliance
- Low VOC/Low odor: Zero harmful emissions during production.
- Solvent-free formulation: Complies with REACH/ROHS.
- Efficient Processing Properties
- Rapid curing: Initial set within 3-15 seconds after melting.
- Thermoplastic reversibility: Remeltable for filter recycling/repair.
Copolyester PES (polyethersulfone copolyester) hot melt adhesive is a high-performance thermoplastic adhesive material with excellent heat and chemical resistance and excellent bonding strength.
Melting temperature range: 180°C - 200°C (depending on the equipment and pellet type).
Yes. This product is a solvent-free, low-VOC adhesive that complies with international environmental regulations, including OEKO-TEX and REACH.
